丰富网络制式覆盖
优越硬件设计，专为车载前装设计
支持3GPP Release 10技术，提供更佳4G体验
标准LGA封装，丰富标准接口，高可靠性
支持模拟音频，可选内外置CODEC数字音频
Favalon AL640
专为汽车前装应用而设计的LTE Cat 4车规模组
产品优势
搜索
CN

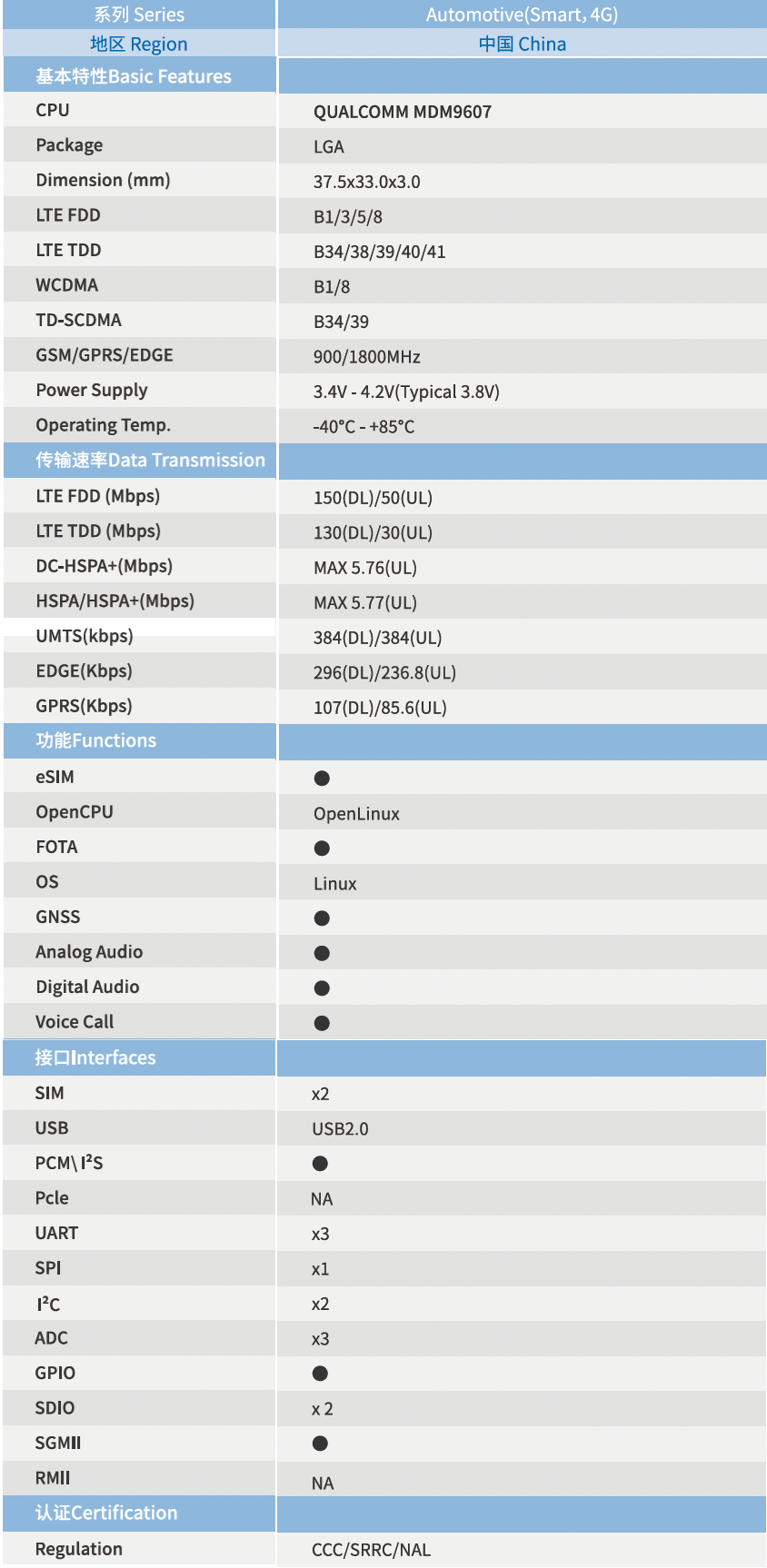

| Automotive(LTE Cat 4) | AL640 | |
|---|---|---|
| 区域 | 中国 | |
| 基本特性 | CPU | QUALCOMM MDM9607 |
| 封装 | LGA | |
| 尺寸(mm) | 33.0×37.5×3.0 | |
| LTE FDD | B1/3/5/8 | |
| LTE TDD | B34/38/39/40/41 | |
| WCDMA | B1/8 | |
| TD-SCDMA | B34/39 | |
| EVDO | BC0 | |
| GSM/GPRS/EDGE | 900/1800MHz | |
| Power Supply | 3.4V ~ 4.2V(Typical 3.8V) | |
| Operating Temp | -40°C ~ +85°C | |
|
传输速率 |
|
|
|
|
LTE FDD 1 |
150Mbps(DL)/50Mbps(UL) |
|
|
LTE TDD 1 |
130Mbps(DL)/35Mbps(UL |
|
|
DC-HSPA+
|
MAX42Mbps(DL) |
|
|
HSPA/HSPA+ |
MAX5.76Mbps(UL) |
|
|
UMTS |
384Kbps(DL)/384Kbps(UL) |
|
|
TD-SCDM |
4.2Mbps(DL)/2.2Mbps(UL) |
|
|
EDGE |
296kbps(DL)/236.8kbps(UL) |
|
|
GPRS |
107kbps(DL)/85.6kbps(UL) |
| 功能 |
|
|
|
|
eSIM | ● |
|
|
OpenCPU |
OpenLinux |
|
|
OS | Linux |
|
|
STK | ● |
|
|
LBS | ● |
|
|
FOTA |
● |
|
|
OS Drivers |
Linux/Windows/Android |
|
|
SMS | ● |
|
|
Analog Audio | ● |
|
|
Digital Audio |
● |
|
|
Voice Code | ● |
|
|
AudioPlay/Record |
● |
|
|
Protocols |
TCP/UDP(S)/DHCP/HTTP(S)/FTP(S)/SMTP/IPV4V6/SSL/TLS/PING |
| 接口 |
|
|
|
|
SIM |
x 2 |
|
|
USB2.0 |
x1 |
|
|
PCM\I2s |
x1 |
|
|
UART |
x3 |
|
|
SPI |
x1 |
|
|
I2C |
x2 |
|
|
ADC |
x3 |
|
|
GPIO |
● |
|
|
SDIO |
WLAN x1, eMMC x1 |
|
|
SGMII |
x1 |
| 认证 |
|
|
|
|
法规认证 |
CCC/SRRC/NAL |
* = 计划/开发中
